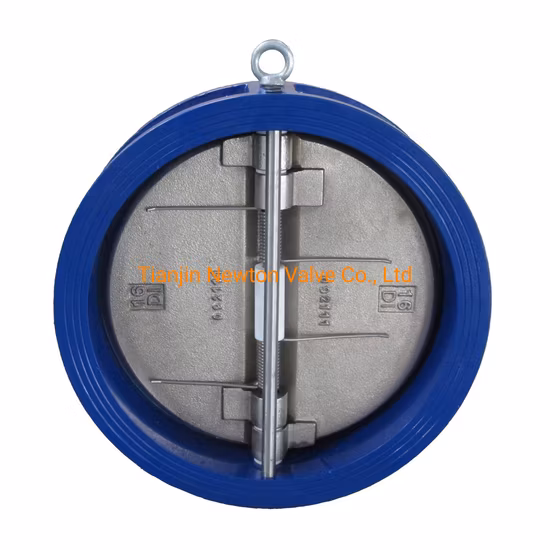

Stainless Steel Double Disc Non Return Wafer Butterfly Check Valve

Basic Info

Function	Prevent Liquid Returns Back
Flow Direction	Unidirection
Standard	DIN/JIS/ANSI/BS
Application	Industrial Usage, Chemical Industry
Available Material	Di, Ci, Stainless Steel, Carbon Steel
Size	DN40-DN700
Working Pressure	Pn10/Pn16/125lb/150lb/JIS10K
Working Environment	Water, Oil, Steam
Working Temperature	<=120 Degree
Transport Package	Wood Box
Specification	DN40-DN700
Trademark	Customized
Origin	China
HS Code	8481804090

Product Description

Stainless Steel Double Disc Non Return Wafer Butterfly Check Valve
Sepcifications

Size	DN40-DN700
Class	PN10/PN16/125LB/150LB/JIS10K
Working environment	Water, Oil, Steam
Working temperature	0ºC-80ºC
Available Material	DI, CI, Stainless Steel, Carbon Steel



Part Material

ITEM	PART NAME	MATERIAL
1	Body	Stianless Steel
2	Plate	DI, Stianless Steel, Bronze
3	Spring	Stianless Steel
4	Hinge Pin	Stianless Steel
5	Stop Pin	Stianless Steel
6	Plug	Carbon Steel
7	Body Bearing	PTFE
8	Spring Bearing	PTFE
9	Eye Bolt	Carbon Steel
10	Body Seat	EPDM,CR, FKM, NR

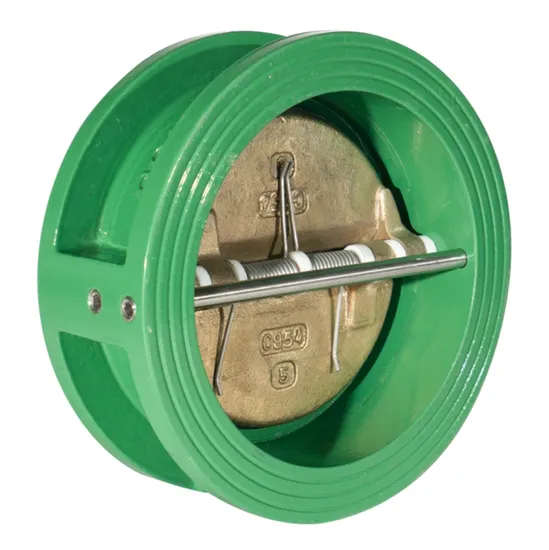

Picture & Drawing

Dimension

Other Hot Products

Factory



Packaging
We value the packaging of our products. Multi-layer packaging prevents impurities from adhering to the valve body and is brought into the media

Meet us in Exhibition
